Hardware Specifications
| Parameter | Specification |
|---|---|
| GPU Architecture | AMD Polaris 20 XT (Ellesmere) — 14nm FinFET |
| PCI Device ID | 0x67DF (Ellesmere XT) |
| SubVendor ID | 0x174B (Sapphire) / Part E347 |
| Compute Units | 36 CUs — 2304 Stream Processors |
| TMUs / ROPs | 144 / 32 |
| Base Clock | 1340 MHz |
| Boost Clock | 1411 MHz |
| Memory | 8 GB GDDR5 (Samsung or Hynix, batch-dependent) |
| Memory Clock | 2000 MHz (8 Gbps effective) |
| Memory Bus | 256-bit |
| Memory Bandwidth | 256 GB/s |
| TDP (stock BIOS) | 185W |
| Power Connectors | 1× 8-pin + 1× 6-pin |
| Dual BIOS | Yes — hardware switch on PCB edge |
| Flash Tool | ATIFlash / VBFlash |
| BIOS Editor | Polaris BIOS Editor (PBE) |
BIOS Structure and Modification Potential
Polaris BIOS has a well-mapped internal structure that Polaris BIOS Editor exposes directly. The GDDR5 memory timing strap table is the primary modification target — each frequency tier (1500/1625/1750/2000 MHz) has an independent set of CAS, RAS, and burst length values. Copying a faster tier's timing values into the slot corresponding to the operating frequency is the core of timing strap modification.
Stock BIOS Power Limits
The Sapphire Nitro RX 580's stock BIOS ships with a 185W TDP ceiling and a 20% power limit overhead slider in AMD drivers (Wattman). The Nitro's power delivery uses 8+6 pin connectors feeding a more robust VRM than Sapphire's own Pulse variant. PBE power table modification can extend the TDP ceiling to 220W on the Nitro, though throttle onset under sustained compute load occurs at lower real-world wattages.
Dual-BIOS Recovery Advantage
The Nitro's physical dual-BIOS switch — a small toggle on the PCB near the display outputs — enables BIOS modification without the risk of a permanently bricked card. A failed flash on the primary BIOS (position 1) can be recovered by switching to position 2, booting with the stock BIOS, and reflashing position 1 from a working system. This makes the Nitro RX 580 the recommended starting point for anyone learning ATIFlash and PBE workflows.
Performance Characteristics
In 2026 context, the RX 580 8GB occupies the lower tier of usable discrete GPU performance. At 1080p resolution with medium to high quality settings, it remains functional for older game libraries and compute workloads that don't saturate the GDDR5 bandwidth. The 256 GB/s bandwidth figure becomes the limiting factor in memory-intensive workloads before the shader count does.
| Workload | Stock Result | After Timing Mod | Delta |
|---|---|---|---|
| Memory Bandwidth (RW) | ~255 GB/s | ~272 GB/s | +6.7% |
| OpenCL Compute (FP32) | baseline | +5–8% | varies by vendor |
| Boost Clock Stability | 1411 MHz | 1411 MHz | unchanged |
| Power Draw (full load) | ~183W | ~183W | unchanged |
The performance uplift from timing strap modification is memory-bandwidth-bound: clock-for-clock, the memory subsystem delivers more data per cycle. This benefits compute workloads and texture-heavy rendering more than vertex-bound workloads. In synthetic bandwidth tests, Samsung-equipped cards typically show higher peak bandwidth after modification than Hynix variants on identical clock speeds.
Thermal Behavior

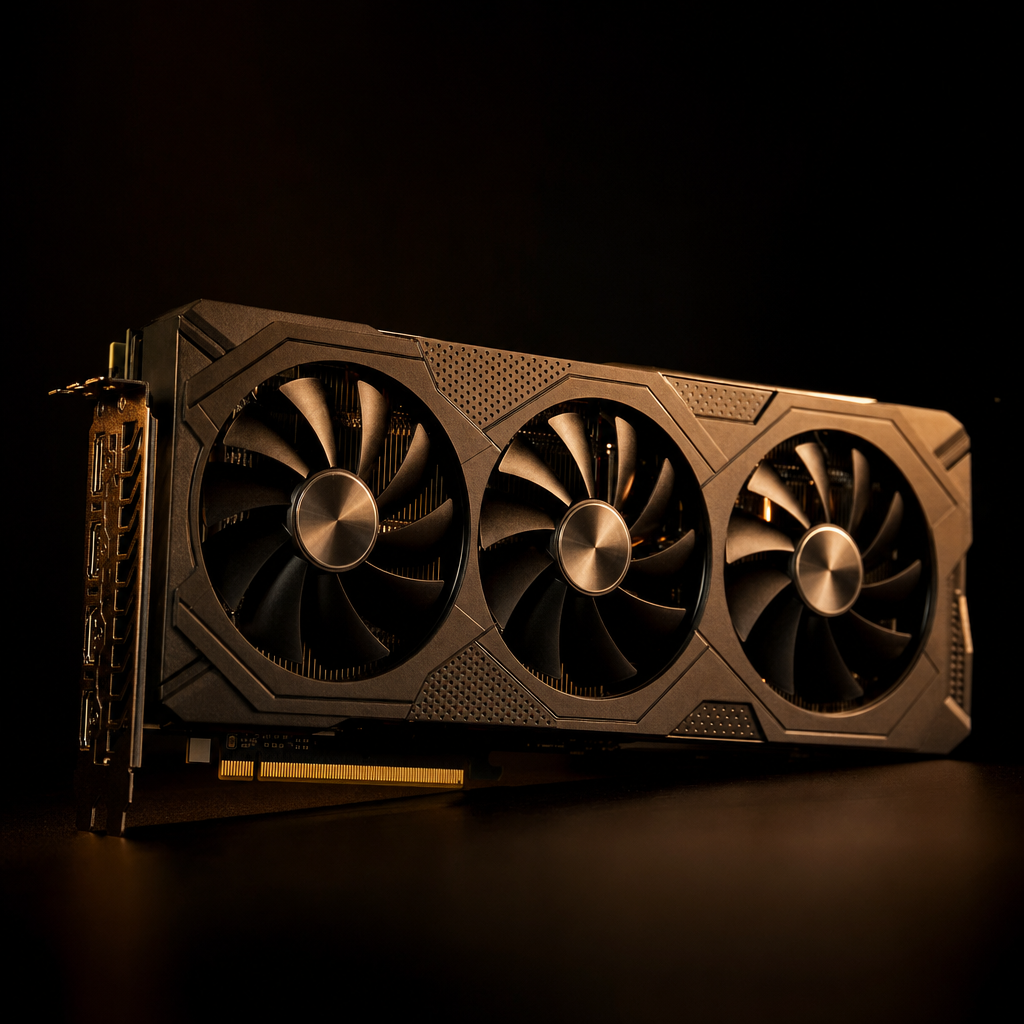

The Nitro's triple-fan cooler with heat pipe layout keeps the Polaris 20 XT die below 80°C under sustained load in stock configuration. The default fan curve targets 75°C junction temperature — fans ramp to ~1800 RPM at this point and hold. Memory junction temperature is not directly exposed by Polaris; external thermal monitoring suggests GDDR5 operates well within its operational ceiling in stock Nitro configuration.
Extended compute runs at modified TDP limits (220W via PBE) increase average die temperature by 4–6°C on the Nitro platform. The VRM thermal solution on the Nitro is adequate for 220W sustained, unlike Pulse-tier boards which can see VRM throttling at elevated power limits.
2026 Second-Hand Market Value
The Sapphire Nitro RX 580 8GB trades at approximately $35–55 USD in the secondary market depending on condition and regional availability. For compute workloads without modern API requirements, this represents strong value per watt. Cards with mining history should be inspected for VRM wear and evaluated critically — the GDDR5 modules' operational hours contribute less to degradation than power delivery stress does on modified configurations.
BIOS Repository Reference
See the GPU BIOS Repository for Sapphire Nitro RX 580 BIOS SubVendor ID cross-reference, ATIFlash compatibility notes, and SubVendor ID 174B full part number list.
